How to use SAP's WebAS J2EE JMS Queue in Exchange Infrastructure

Did you know that the WebAS J2EE server also contains JMS queues you can use for XI scenarios? And that you don't have to license MQSeries or SonicMQ? The queues can be created and configured using the J2EE Visual Adminstrator, and be used in JMS sender and receiver communication channels.

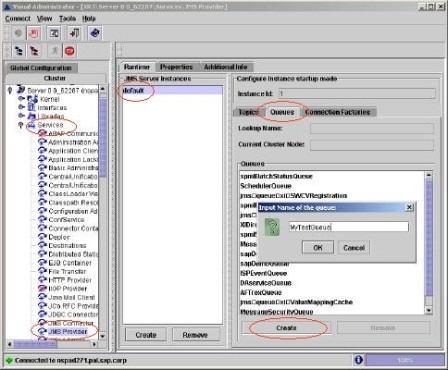

Creating a queue in the Visual Administrator:

1. Navigate to Server -> Services -> JMS Provider
2. Click on the "Default" service or create your own
3. Click on the tab: Queues
4. Click on "Create" to create a queue

[IMAGE]

Create/Configure JMS sender and receiver communication channels:

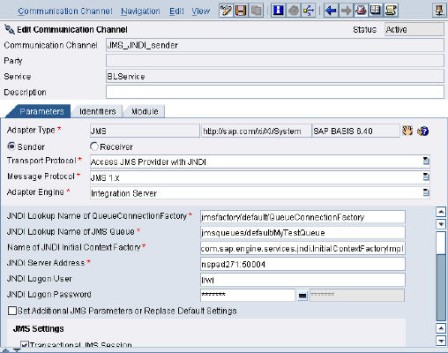

*JMS Sender Communication Channel:
[IMAGE]

Configurations:

Transport Protocol: Access JMS Provider with JNDI
JNDI Lookup Name of QueueConnectionFactor: jmsfactory/default/QueueConnectionFactory
JNDI Lookup Name of JMS Queue: jmsqueues/default/MyTestQueue (This is based on the path of the queue created in Visual Administrator.)
Name of JNDI Initial Context Factory: com.sap.engine.services.jndi.InitialContextFactoryImpl

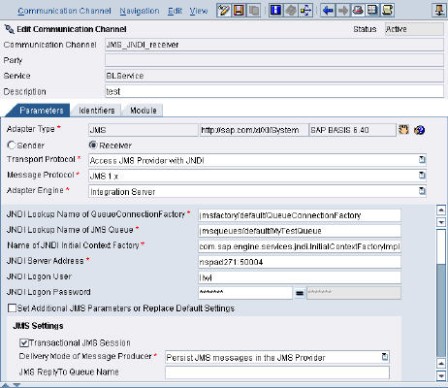

*JMS Receiver Communication Channel:
[IMAGE]

Configurations:

Transport Protocol: Access JMS Provider with JNDI
JNDI Lookup Name of QueueConnect...


Digg This!    StumbleUpon Toolbar StumbleUpon    Bookmark with Delicious Del.icio.us


<< PREVIOUS | NEXT >>: T-SQL and PL/SQL common languages for...
VIEW ALL IN THIS CATEGORY


RELATED CONTENT
SAP ABAP/Java developer tips
How to do additional dialog processing after SAP COMMIT WORK statement
How to find a piece of SAP ABAP code without debugging
How to read an SAP transaction in an ABAP code
How to provide an SAP R/3 4.5B application server with a Web service interface
How to find owners and transports of deleted ABAP programs
Fixing a common OPEN_FORM and START_FORM error in SAPscript
Select Text fields: Case-insensitive
Is this the quickest way to find a BADI?
Easily debug error messages in SAP processes
Accessing private attributes in ABAP Objects

SAP PI/XI
NetWeaver PI 7.1 easier to implement than earlier versions, SAP says
Getting started with SAP NetWeaver PI (formerly XI)
Bucking the economic trend, HSBC embarks on NetWeaver PI project
How to be a self-taught NetWeaver and ABAP expert
An ABAP user wants to learn XI
What are the benefits of EAI?
Quiz: SAP XI for beginners
XI: Search through the payload of a message... without TREX!
Automate the process of uploading catalogs using XI
Using Folders in PI 7.1
SAP PI/XI Research

SAP XI for developers
T-SQL and PL/SQL common languages for database-independent applications
Chapter of the Month -- September 2006
How does installing XI affect an SAP release?
Does SAP XI mean SAP gave up on making IDocs the EDI standard?
What is the future of ALE/EDI and IDocs, in light of XI?
Integration tools: using ALE and XI
Are development skills required for a position in SAP XI?
How to learn Java?
How long does it take to implement XI?
BAPIs, IDocs, and SAP's road map

RELATED GLOSSARY TERMS
Terms from Whatis.com − the technology online dictionary
SAP Exchange Infrastructure  (SearchSAP.com)
SAP Integration Adapter  (SearchSAP.com)
SAP Integration Repository  (SearchSAP.com)
SAP Integration Server  (SearchSAP.com)

RELATED RESOURCES
2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems
Search Bitpipe.com for the latest white papers and business webcasts
Whatis.com, the online computer dictionary


ionFactor:
jmsfactory/default/QueueConnectionFactory
JNDI Lookup Name of JMS Queue: jmsqueues/default/MyTestQueue (This is based on the path of the queue created in Visual Administrator.)
Name of JNDI Initial Context Factory: com.sap.engine.services.jndi.InitialContextFactoryImpl

NOTE: Unfortunately, there is no tool to view or administer the content of the queue.

William Li is a member of the NW XI RIG at SAP Labs.


This content is reposted from the SAP Developer Network.
Copyright 2006, SAP Developer Network

SAP Developer Network (SDN) is an active online community where ABAP, Java, .NET, and other cutting-edge technologies converge to form a resource and collaboration channel for SAP developers, consultants, integrators, and business analysts. SDN hosts a technical library, expert blogs, exclusive downloads and code samples, an extensive eLearning catalog, and active, moderated discussion forums. SDN membership is free.

Want to read more from this author? Click here to read William Li's Weblog. Click here to read more about Exchange Infrastructure on SDN.
